The below details are indicative and a good start… however, the dimensions, payloads and pallet quantities vary depending on the vehicle’s precise specification. I.e. whether it’s a Curtainsider or flatbed, with or without a tail lift or Hiab (truck mounted crane). There are so many variations that we can’t list them all, so if you are unsure, please contact us for more information.

SMALL VAN

Load Length Load Width Load Height Load Weight Pallets Loading Time
<1.2m <1m <0.5m <400kg 1/2 (UK) <0.5m Tall <20 minutes

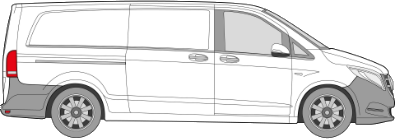

SHORT (2.4m) VAN

Load Length Load Width Load Height Load Weight Pallets Loading Time
<2.4m <1.2m <1.2m <600kg 2 (UK) <1m Tall <20 minutes

MEDIUM (3m) VAN

Load Length Load Width Load Height Load Weight Pallets Loading Time
<3m <1.3m <1.6/1.8m <1000kg 3 (UK) <1.7m Tall <20 minutes

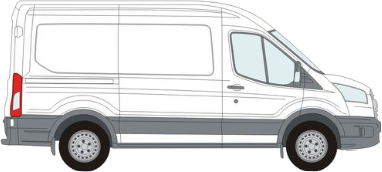

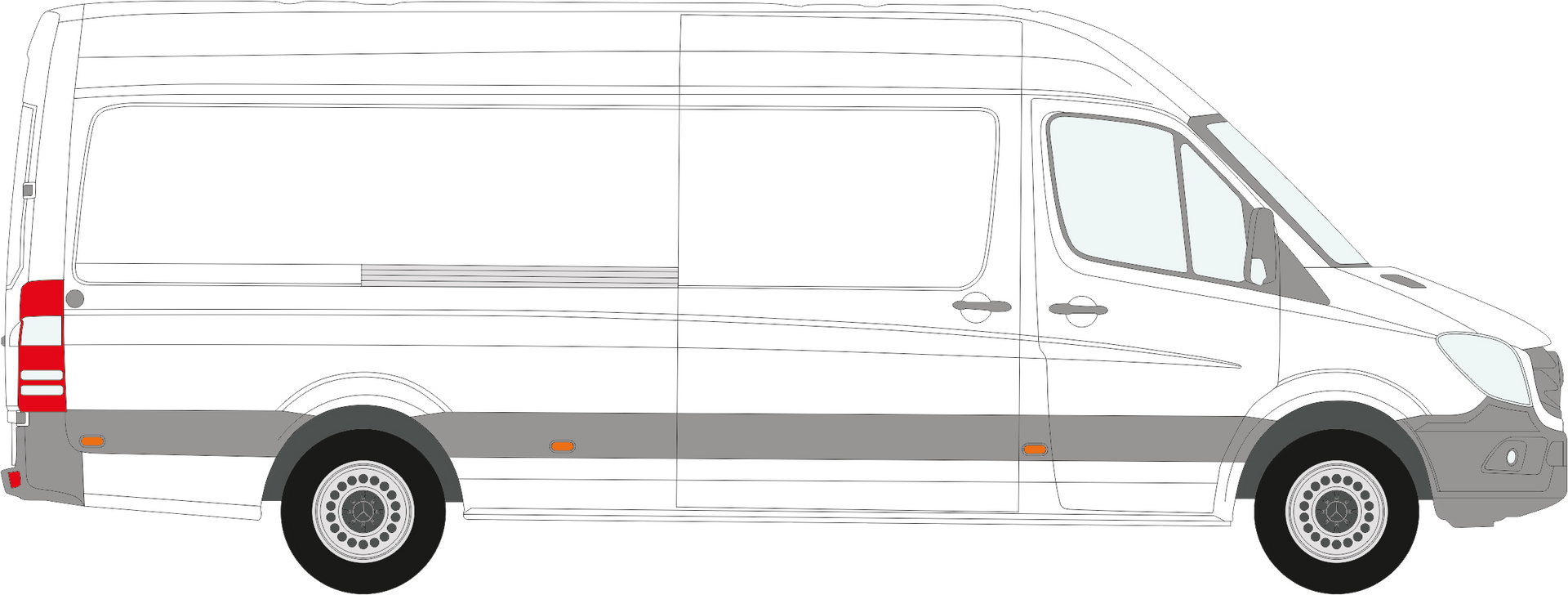

LONG (4m) VAN

Load Length Load Width Load Height Load Weight Pallets Loading Time
<4m <1.3m <1.8m <1000kg 4 (UK) <1.7m Tall <30 minutes

EXTRA LONG (4.2m) VAN

Load Length Load Width Load Height Load Weight Pallets Loading Time
<4.2m <1.3m <1.9m <1000kg 4 (UK) <1.85m Tall <30 minutes

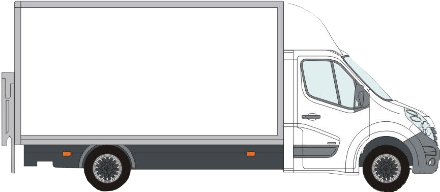

LUTON VAN (3.5T)

Load Length Load Width Load Height Load Weight Pallets Loading Time
<4.2m <2m <2m <850/1000kg 4 (UK) <1.8m Tall <30 minutes

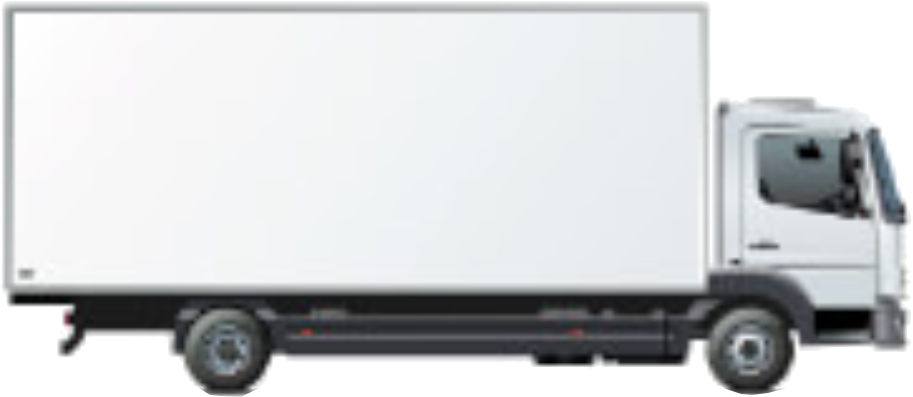

7.5T TRUCK/LUTON (RIGID)

Load Length Load Width Load Height Load Weight Pallets Loading Time
<6m <2.5m <2.4m <2300kg 10 (UK) <60 minutes

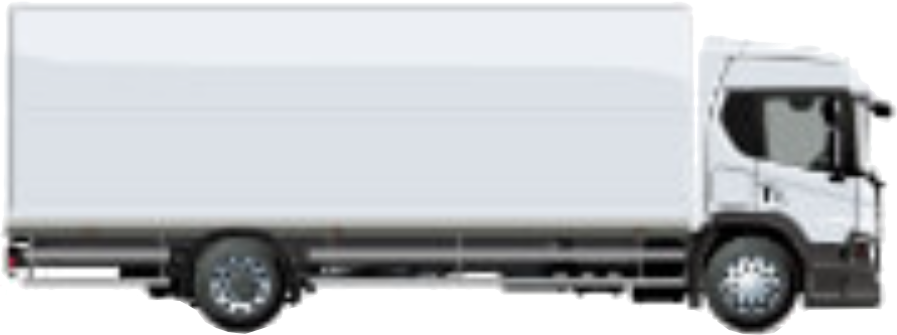

18T TRUCK (RIGID)

Load Length Load Width Load Height Load Weight Pallets Loading Time
<7.5m <2.5m <2.5m <8500kg 14 (UK) <60 minutes

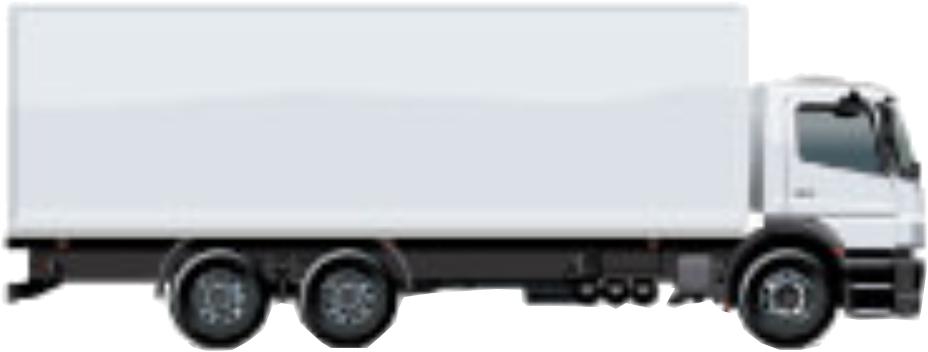

26T TRUCK (RIGID)

Load Length Load Width Load Height Load Weight Pallets Loading Time
<8.5m <2.5m <2.5m <14000kg 16 (UK) <60 minutes

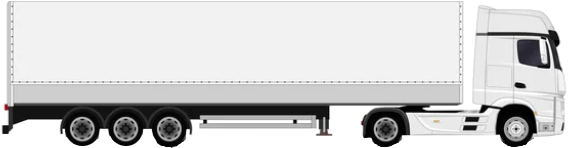

EXTRA LARGE TRUCK (ARTIC)

Load Length Load Width Load Height Load Weight Pallets Loading Time
<13.5m <2.5m <2.5m <26000kg 26 (UK) <60 minutes
